Front mounted Pumping Unit

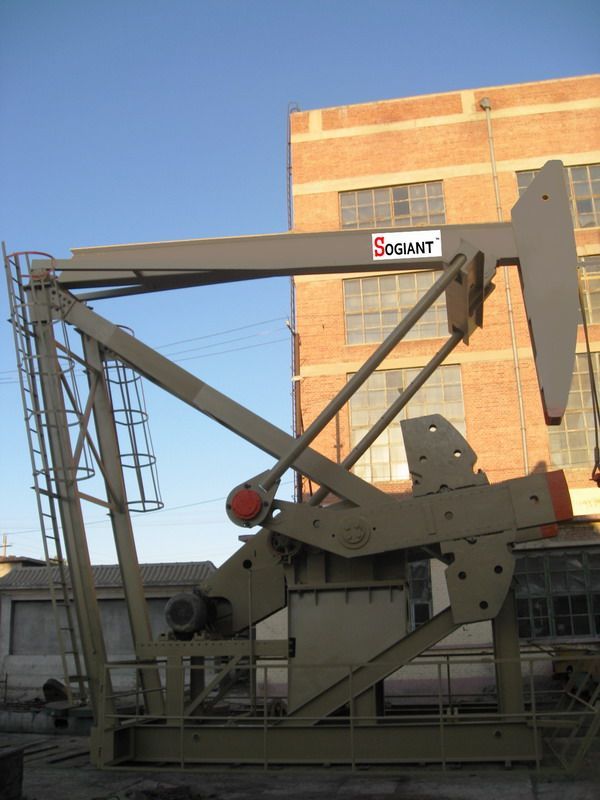

 Sogiant Front Mounted pumping unit is of the unique geometric features. The design of phased crank enable crank rotation angle to be enlarged to around 195 degree during upstroke and decreased to around 165 degree during down stroke. It lowers the acceleration and max load during upstroke, lowering down the peak torque of gear reducer and therefore a smaller prime mover can be used for energy-saving purpose. Tel:+0086 931 2113612 Fax:+0086 931 2113622    Address:36 Mogao Road.,Anning District,Lanzhou,China.
